Hot Filling Line
|
|

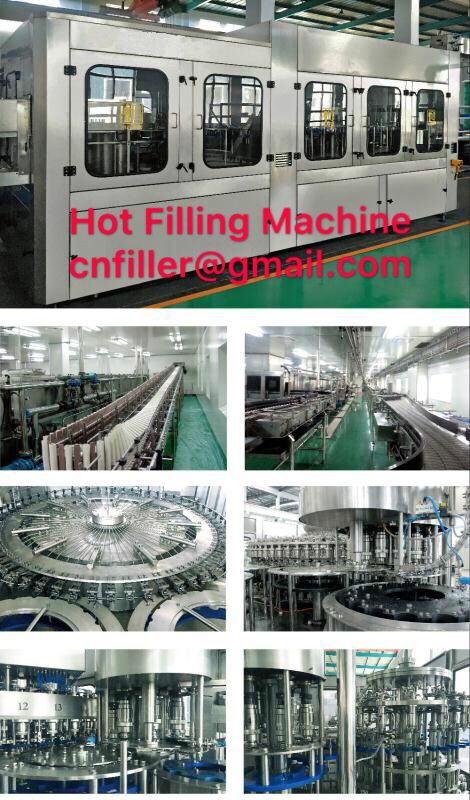

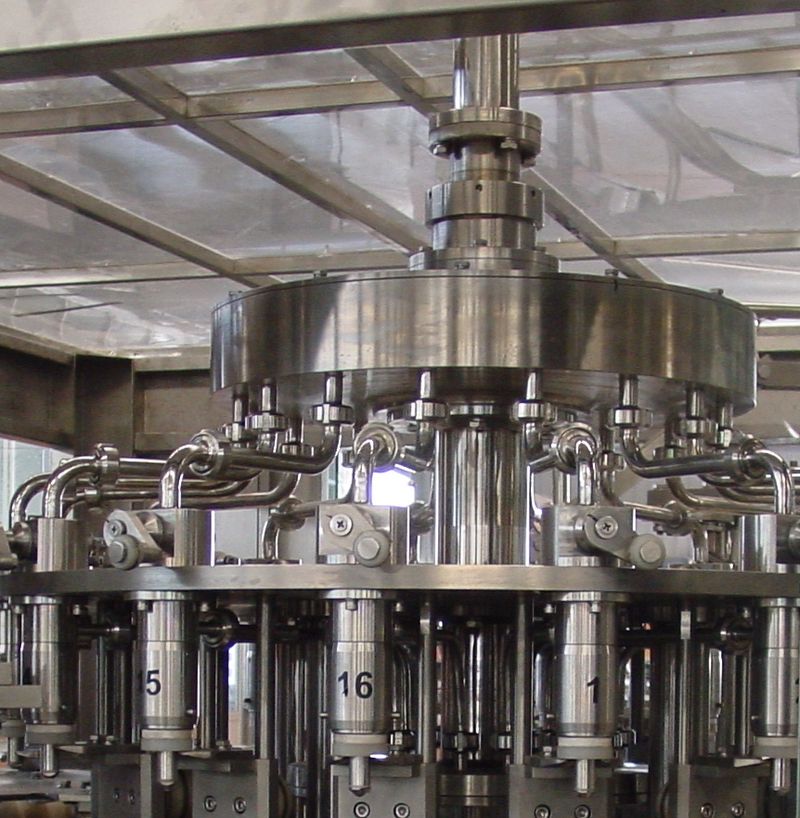

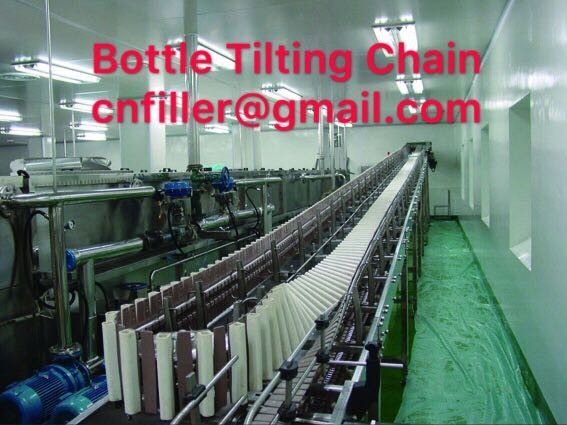

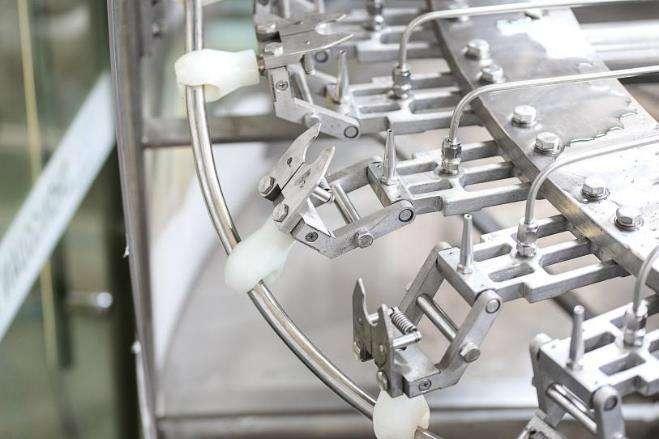

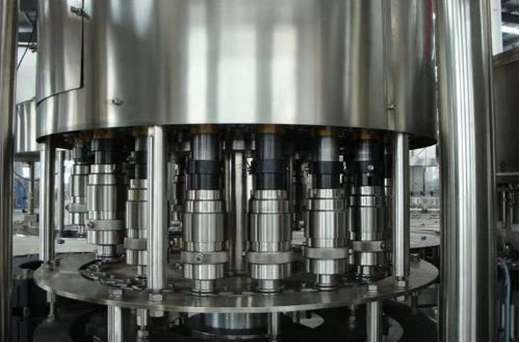

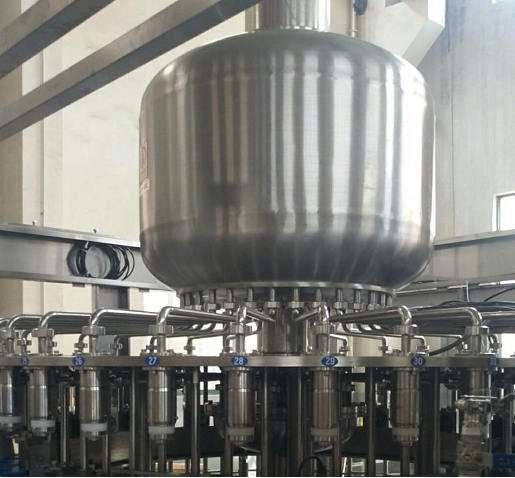

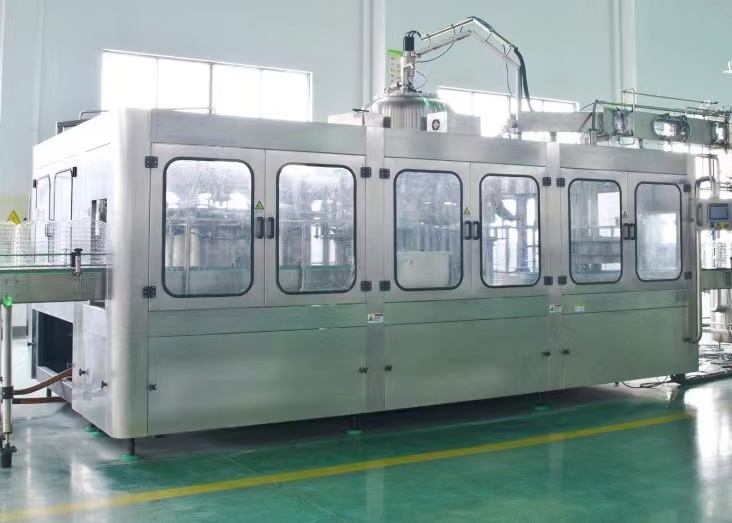

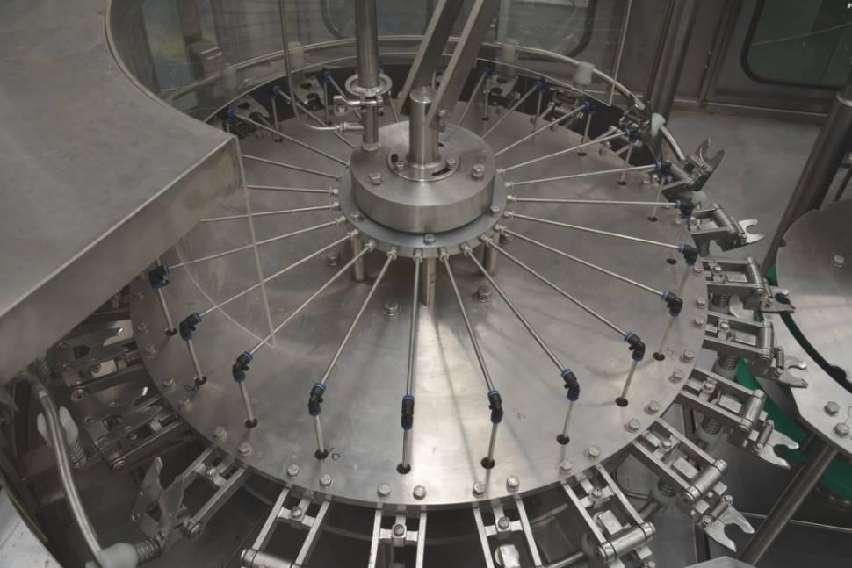

Hot Filling LineApplication：Tea、juice、functional drink、milk beverage etc.Applied Containers：Heat-resistant PET bottles with various capacities and shapes.Filling SystemMechanical valve or Flow-Meter Valve. Capacity：5,000—48,000BPH. Product’s scope：Blowing molding system，Air compressor system，Filling system，Purification system，Caps sterilization system，Sterile air system，Bottle tilting chain and Cooling tunnel, Filled bottle conveying system，Labeling machine，Carton/Film packing machine，Palletizer，Electric control，Engineering design and Construction. Our juice, tea drink filling machine is an automatic liquid packing machine which perfectly combines bottle washing machine, pressure filling machine and capping machine. In addition to juice and tea, this filling machine can also be used to fill non-carbonated liquid like water. Empty bottles are conveyed to the rinsing machine by an air conveyor, then be turned over and washed inside by the nozzles. After dripping, bottles are fed into the filling machine for high quality filling. At last, safe and reliable capping is performed by the capping machine. Features1、All parts in contact with liquid are manufactured by superior stainless steel so as to meet the related food hygiene requirements. 2、The adoption of pressure filling method helps our juice, tea drink filling machine accomplish high filling speed, high filling precision and great filling quality. 3、Bottles are conveyed by the air conveyor, transported by clipping the bottle neck and put out by normal conveyor chain. Thus, it is easy to change bottle size. 4、3-in-1 monoblock greatly shortens the process of washing, filling and capping, which can effectively reduce product pollution and help keep the machine clean and sanitary. 5、High efficiency of this filling machine results in low production cost. |
热罐装适用于产品：茶，果汁，功能饮料，乳饮料等 适用容积：不同种类耐热的PET瓶 灌装系统：机械阀和流量计 产量：5,000—48,000BPH. 产品构成：吹瓶机，空压机，灌装机，过滤系统，盖消毒，无菌空气，倒瓶+喷淋冷却，实瓶灌装系统，标签机，纸箱/膜包机，码垛机，电器控制，工程设计与建造. 我们的果汁、茶饮料灌装机是一种全自动液体包装机，它完美地结合了洗瓶、压力灌装机和压盖机。除了果汁和茶之外，这个灌装机还可以用来填充非碳酸液体，比如水。 空瓶子通过空气输送器传送到清洗机，然后由喷嘴将其翻转并清洗。滴水后，瓶子被送入灌装机，以获得高质量的灌装。最后，安全可靠的封盖是由压盖机完成的。 特征所有与液体接触的部件都是由优质不锈钢制造的，以满足相关的食品卫生要求。 采用压力灌装法，帮助我们的果汁、茶饮料灌装机达到了高灌装速度、高灌装精度和高灌装质量。 瓶子由空气传送带传送，通过瓶颈和正常的输送链来运输。因此，很容易改变瓶子的大小。 三合一机大大缩短了清洗、充填和封盖的过程，有效地减少了产品污染，使机器保持清洁和卫生。 这种灌装机的高效率，生产成本低。 |
スプレー減菌クーラースプレー減菌クーラーとは熱水スプレー減菌及び温度下がり、冷却の三段式処理の技術を応用します。自動塩素処理ポンプ、補水量によって自動塩素調節可能です。熱水は蒸気加熱装置生成します、使用後の水が機械の溝に流れ、スプレーポンプでリサイクル使用されます。 熱水温度は設定温度に達さない場合、加熱装置で妥当な温度をプラスされます。熱水温度は設定温度にオーバーする場合（冷却用水は瓶内の温度で温められます）、リサイクルポンプで室外冷却機に送られます（蓄積）冷却後リサイクル使用されます。 |

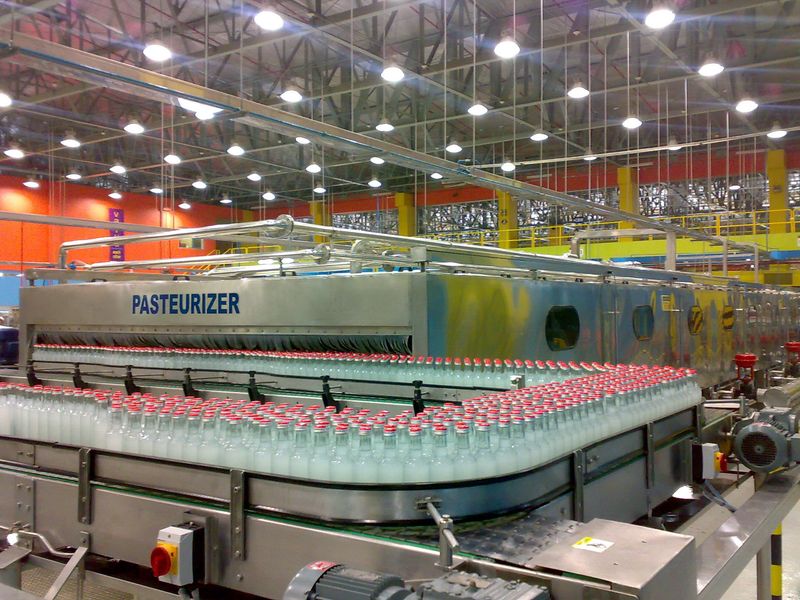

Spraying Cooling TunnelThe system uses hot water showering for sterilization and gradual cooling with 5-section treatment. It equips automatic chlorine dosing pump which can adjust chlorine dosing quantity according to water supply volume. Hot water is produced by steam heating device. The used water flows into water flume in the machine base and recycled by showering pump for using again. If the hot water temperature does not reach preset temperature value, it will be heated again by heating device. If hot water exceeds the preset temperature (the cooling water has been heated by heat of the bottles), it will be conveyed by recycle pump to cooling tower outside of workshop and cooled for reuse. |
噴淋殺菌冷卻機该系统采用热水喷淋杀菌和逐步降温冷却的三段式处理。设备配置有自动加氯泵，可根据补水量调节加氯量。热水由蒸汽加热装置 产生，使用后的水流入机架水槽，由喷淋泵循环使用。若热水温度达不到设 定温度，由加热装置再对其适当加温。若热水温度超过设定温度（该冷却用水已经被瓶内的热量升温），则由循环泵送至车间外的冷却塔（由用户自 备）冷却后再循环使用。 |
